BIM-led formwork execution with site-ready precision
Our project work combines constructible BIM mockups, formwork sequencing, drainage detailing, and site coordination so execution teams can move faster with fewer clashes and cleaner handoffs.
3DBIM mockups
SiteExecution ready
FormworkSystem detailing
QAVisual review
BIM Formwork
Completed Project
Precision Formwork for Museum Structural Elements

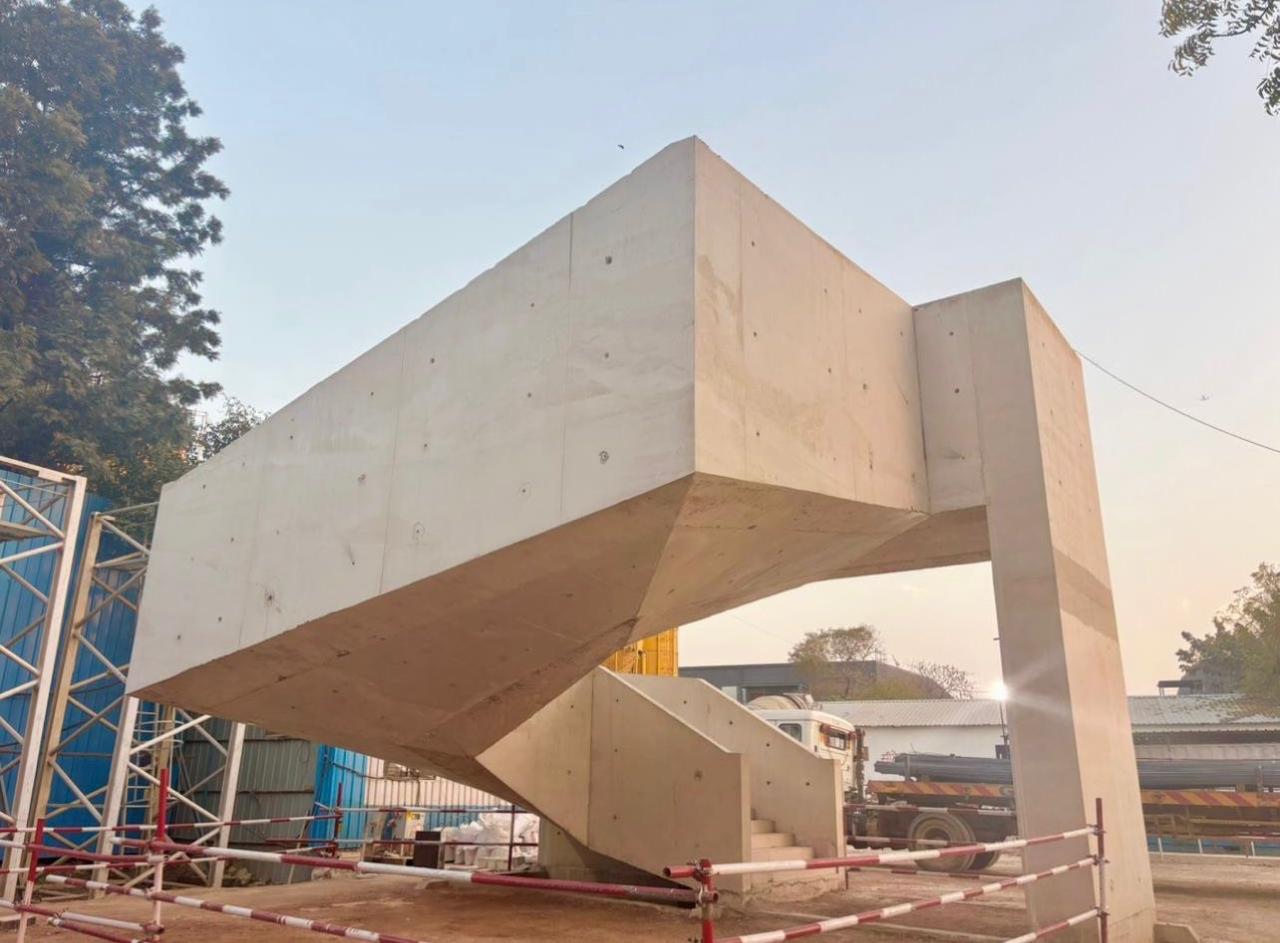

Execution of specialized formwork for a museum project, including stair side walls, flight slabs, and upstand beams. The system ensured dimensional accuracy, structural integrity, and efficient on-site assembly aligned with complex architectural requirements.
ScopeStair walls, slabs, beams
SystemBIM-coordinated formwork
Output3D mockup and site visuals
ImpactAccurate assembly planning
Complex geometry translated into clear visual construction references.
Formwork support, slab edge, and beam conditions reviewed before execution.
Site team received mockup-led coordination for faster decision making.
Football Court Ventilation Outlet - Custom Formwork (Dog Funnel System)
This project focuses on the development of a customized formwork solution for a football court's ventilation outlet structure, commonly referred to as the Dog Funnel Structure. A detailed 3D model was created to accurately represent the concrete geometry and ensure precision in execution. Based on client requirements and site constraints, the formwork system was custom-designed and optimized, considering the availability of standard components. To address geometric complexity, several specialized formwork components were designed and developed, enabling efficient assembly, structural stability, and smooth concrete finishing. The approach integrates practical constructability with BIM-based visualization, ensuring better coordination, reduced material wastage, and improved on-site execution efficiency.
ScopeDrainage outlet formwork
Use CaseSchool sports infrastructure
CoordinationWater flow and surface levels
StatusOngoing execution
Drainage formwork geometry modeled for consistent water movement.
Surface transitions coordinated with sports court finish requirements.
Mockup visuals support field review before final casting.
Need BIM-ready formwork planning for a live project?
Share drawings, site constraints, or a concept model and BIMFT can help convert it into clear construction-ready formwork coordination.
